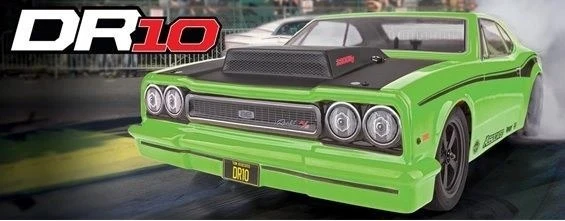

Associated Associated 1/10 DR10 2WD Drag Race Car Brushless RTR, Green

Overview

Features
Based on the 9-time R.O.A.R. National Champion short-course race truck platform
2.4GHz 2-channel radio with new DVC (Dynamic Vehicle Control) receiver featuring built-in adjustable gyro
Three-position wheelie bar with optional large wheels
High-torque, metal-gear Reedy servo with spring style servo saver
Powerful Reedy 3300kV brushless motor
Reedy 3300kV brushless motor
Lightweight front drag tires
Durable and lightweight aluminum top shaft
Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate both NiMH and 2/3S LiPo battery packs
Metric hardware throughout
18 precision, rubber-sealed ball bearings
Durable front and rear wide body mounts
2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable slipper clutch
Adjustable suspension geometry
Vertical ball ends for roll center adjustments, front and rear
Many Factory Team options already available!
Overview
Modern street racing’s roots go back to Woodward Avenue, Michigan in the 1960s when the three main Detroit-based American car companies were producing high-powered performance cars. A private racing venue was not always available, and therefore the race would be held illegally on public roads.

The DR10 Drag Race Car is based on the 9-time R.O.A.R. Short Course National Championship winning trucks. The DR10 features a water-resistant high-power Reedy brushless speed control and 3300kV brushless motor, a 2.4GHz 2-channel radio system, as well as our ALL NEW DVC (Dynamic Vehicle Control) receiver unit with built-in adjustable digital gyro. Add to that a Reedy metal-gear, digital, high-torque servo and a water-resistant enclosed receiver box.

Needed to Complete
Four (4) AA batteries (#ASC302 Reedy AA Alkaline) used in the transmitter
NiMH or LiPo battery with High Current T-Plug (#ASC724 Reedy 7-cell WolfPack or #ASC751 Reedy WolfPack LiPo)
Charger for battery used (#ASC27201 Reedy balance Charger – good for LiPo, LiFe)

What’s in the Box?
(1) DR10 Drag Race Car RTR
(1) 2.4GHz 2-channel radio
(1) High-torque, metal-gear Reedy servo
(1) Reedy Brushless Speed Control
(1) Product Manual

Specifications
Back to Top ^

Approximate Assembly Time
No assembly required
Ball Bearings
18 precision, rubber-sealed ball bearings
Batteries
2S-3S LiPo (sold separately)
Battery Dimensions
L, W, H: 5.5 x 1.8 x 0.96″ (139 x 47 x 24.5mm)
Charger
Sold Separately
Chassis
Low center-of-gravity molded composite
Completion Level
Ready-To-Run
Drivetrain
2WD
Internal Gear Ratio
2.6:1
Length
24″ (609.6mm)
Motor Type
3300kV brushless motor, Brushless
Radio
Included
Receiver
Included
Scale
1/10
Servos
High-torque, metal-gear Reedy servo with spring style servo saver
Shock Type
Aluminum 12mm big bore coil-over
Speed Control
Included
Suspension
Adjustable suspension geometry
Tire Tread
Slick
Vehicle Type
Drag Racing Car, Dragster
Water-Resistant
Yes
Weight
10.70″ (272mm)
Wheelbase
12.68″ (322mm)
Width
10.7″ (272mm)
