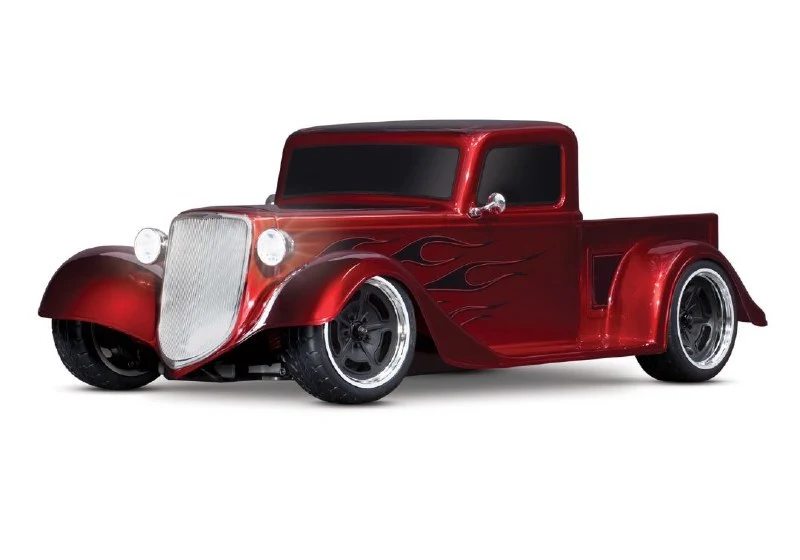

Traxxas Traxxas Factory Five ’35 Hot Rod Truck: 1/10 Scale AWD Ele

The Traxxas Factory Five Hot Rods honor the early days of hot rodding when big power, bright chrome, and curved steel ruled the streets. Like their full-size Factory Five counterparts, the Traxxas ’33 Coupe and ’35 Truck combine modern chassis design with eye-catching gorgeous bodies. Riding on the 4-Tec 3.0 chassis, the Traxxas Hot Rods offer blistering speed and razor-sharp reflexes with timeless good looks. Beautiful to behold and even more fun to drive, the Traxxas Factory Five Hot Rods add a classic touch to your RC experience.

CLASSIC BEAUTY

A steeply-raked chrome grille flows into the long narrow hood and aggressively chopped roof. Chrome headlights flank the sculpted fenders with full running boards. Deep, lustrous paint and wild graphics complete the package. The look is pure classic hot rod and Traxxas brings this timeless style to life in 1/10 scale.

NEW 4-TEC 3.0 HOT ROD CHASSIS

The 4-Tec 3.0 chassis wheelbase is extended to 300mm and outfitted with ultra low-profile suspension. This allows for highly accurate, deep-cut body lines and exacting proportions throughout both models. The rigid modular platform delivers ultimate steering precision and nearly infinite tuning potential. No classic hot rod ever handled this well.

FACTORY LIGHTING

Factory-installed LED lighting adds another layer of scale detail to the sculpted Hot Rod bodies. Brilliant white LEDs illuminate the headlight housings to lead the way with red tail light lenses for the competition as you blow past them. Naturally everything’s waterproof to keep the fun going, regardless of weather conditions.

INNOVATION

Insightful design touches and precision engineering, combined with a low-CG, mid-motor configuration and fully adjustable suspension, make the Traxxas Factory Five Hot Rods as exciting and capable as the real thing.

DETAILS

Look beneath the Hot Rods’ classic lines to reveal the individual design details that make the 4-Tec 3.0 chassis so rewarding. Traxxas examined every detail in order to create a dynamic, high-tech vehicle that’s as easy to operate as it is exciting to drive.

Car Specs:
Length: 16.7 inches (423mm)
Front Track: 7.7 inches (195mm)
Rear Track: 7.9 inches (200mm)
Ground Clearance: 0.3 inches (9mm)
Weight: 4.4lbs (1.89kg) with body (with battery)
Height (ride): 5.9 inches (151mm)
Wheelbase: 11.8 inches (300mm)
Shock Length: 1.5 inches (39mm) (front and rear)
Tire Diameter: 2.8 inches (73mm)
Tire Width (front): 1.1 inches (28mm)
Tire Width (rear): 1.3 inches (32mm)
Wheel Diameter: 2.1 inches (54mm)
Speed Control: XL-5 Electronic Speed Control
Motor (electric): Titan 12T 550 (12-Turn)
Transmission: Single Speed Direct Drive
Overall Drive Ratio: 11.38
Differential Type: Sealed, Hardened Steel Bevel, Limited Slip
Gear Pitch: 48
Chassis Structure/Material: Molded Tub / Nylon Composite
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Dual-Bellcrank
Radio System: TQ 2.4GHz Transmitter
Servo: #2075 High Torque Waterproof
Top Speed: 30+mph (with included optional pinion gear)
Skill Level: 1
Battery Tray: 158mm long / 46mm wide / 23 or 26mm high
Features:

Replica Factory Five Hot Rod ProGraphix Bodies
Front clipless body mount
Injection molded details
Front grille, side mirrors, headlight housings
Custom graphics
Factory LED Lighting
Detailed chrome headlights
Rear red LED lenses
High-Performance Waterproof XL-5 Electronic Speed Control
Innovative waterproof design
Three drive profiles
Sport Mode – forward / brake / reverse
Race Mode – forward / brake
Training Mode – 50% forward / brake / 50% reverse (patented)
Traxxas EZ-Set one-button setup
LiPo and NiMH compatible with two-stage low-voltage
TQ 2.4GHz Radio System
Traxxas #6519 3-channel micro receiver
Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Motor
Powerful Titan 12T 550 modified motor with internal cooling fan
Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions
30+mph with included optional pinion gear
Molded wire retainer keeps motor wires secure
Steering
High-torque waterproof Traxxas #2075 steering servo
Precise servo saver integrated into servo horn
High steering angle option
Low Center of Gravity (Low CG) Chassis
Positions weight low for improved handling
Smooth underside resists drag and snags
Angled front bumper improves approach angle
Modular interlocking chassis pieces
Improves rigidity and tightens tolerances
Allows for easy maintenance
High Performance Suspension
Captured links won’t pop off
Geometry tuned for precise handling
Dual rear camber link mounts
Adjustable droop
Adjustable Battery Hold Down
Easy, secure battery installation
Swivels to allow different height batteries
Locks securely without pins or parts to lose
Efficient Direct All-Wheel Drive
Full-time shaft driven 4-wheel drive
Steel center driveshaft with center bearing support
Direct drive
Sealed, silicone-filled differential
Brushless ready for easy Velineon brushless power upgrade
Wheels and Tires
Replica black Salt Flat-style wheels
Mirror chrome trim rings
High-performance tires with long-wearing compound
Wider rear tires for a more aggressive stance
Replica brake discs incorporate standard 12mm wheel hexes
Springs and Shocks
Fully adjustable oil-filled GTR shocks with X-ring technology
Threaded bodies for easy ride height adjustment
Red powder coated shock springs feature a responsive spring rate
Rubber-Sealed Ball Bearings
Requires Traxxas 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery and Charger (Sold Separately)
Backed by Unparalleled Traxxas Support and Parts Availability
What’s In The Box:

Traxxas Factory Five replica Hot Rod, Ready-To-Race Model with Titan 12T 550 Motor
XL-5 Waterproof Electronic Speed Control
TQ 2.4GHz Radio System
Quick Start Guide
High Quality Maintenance Tools
Optional High Speed Pinion Gear
What You’ll Need:

Battery Pack
Traxxas Hot Rods require the use of a 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery equipped with a Traxxas High Current Connector.
Charger
Traxxas EZ-Peak Plus (TRA2970) recommended.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
