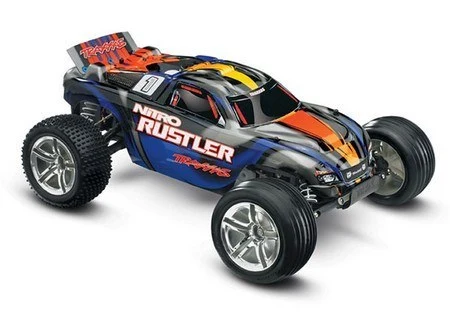

Traxxas Traxxas Nitro Rustler: Blue 1/10-Scale Nitro-Powered 2wd S

This is the glow powered, 2.4GHz radio controlled, ready-to-run
Traxxas Nitro Rustler 1/10 scale Stadium Race Truck
with Traxxas Stability Management.

**The included TQ 2.4GHz radio system is compatible only with the**
**#6519 receiver and does NOT accept the Docking Base accessory.**

FEATURES: Traxxas Stability Management (TSM): Superior tuning algorithms run on
high-speed electronic components to control wheel spin and steering
direction on loose dirt, concrete and even ice and snow. TSM can be
fine tuned or turned off by adjusting the multi-function knob on
the TQi transmitter or the slider in the Traxxas Link app
Chassis: T-6 aluminum anodized blue with fiber composite upper plate/
front brace
Radio: Traxxas TQ 2.4GHz radio system
Engine: Traxxas 2.5 racing engine with EZ-Start electric starter,
slide valve carb, two glow plugs, air filter and cylinder head
protector, battery and charger for EZ-Start
Exhaust: Composite tuned pipe with aluminum header
Drive: Rear wheel with telescoping U-joint drive shafts
Body: Pre-painted, pre-cut polycarbonate body
Shocks: Four composite bodied oil-filled
Slipper Clutch: Adjustable
Suspension: 4-wheel independent
Transmission: Ball bearing equipped, Magnum 281
Differential: Planetary gear with steel internal gears
Fuel Tank: 2.5oz (75cc) with flip-top lid and primer bulb
Brake: Composite disc type
Spur Gear: Nylon, 70 tooth 32-pitch
Wheels: Chrome 2.0″ (51mm) wide, 2.8″ (71mm) diameter five-split
spoke Jato
Tires: Front, ribbed 2.8″ (71mm) inner diameter, 2″ (51mm) wide
Rear, Traxxas Alias 2.8″ (71mm) inner diameter, 2″ (51mm) wide
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
suspension when viewed from the side of the car in relation to thei
chassis

INCLUDES: Assembled Nitro Rustler with TRX-2.5 racing engine and glow plug,
TSM, EZ-Start electric starter, painted body with rear wing,
decals, 2.4GHz radio system, tuned pipe, instruction sheet, extra
glow plug, fuel bottle, tools, battery & charger

REQUIRES: “AA” Batteries: 8 (4 for transmitter and 4 for receiver)
Fuel: Car fuel with 10-15% nitromethane content
Misc. Items: Building and track equipment

SPECS: Length: 17-1/4″ (438mm)
Front Track: 12-1/2″ (318mm)
Rear Track: 12-3/8″ (314mm)
Weight: 60 ounces (1701g) without radio
Height: 6″ (152mm)
Wheelbase: 11.3″ (287mm)
Fuel Capacity: 2.5 ounces (75cc)
Engine: TRX 2.5 racing w/EZ Start System
Gear ratio: Adjustable 8.43:1 to 12.64:1
Differential: Planetary gear
Brake: Disc
Chassis: Double-decker (bottom aluminum,top composite)
Spur gear: Nylon, 70 tooth 32-pitch
Clutch bell: 20 steel tooth
Caster block: Front 30 degrees
